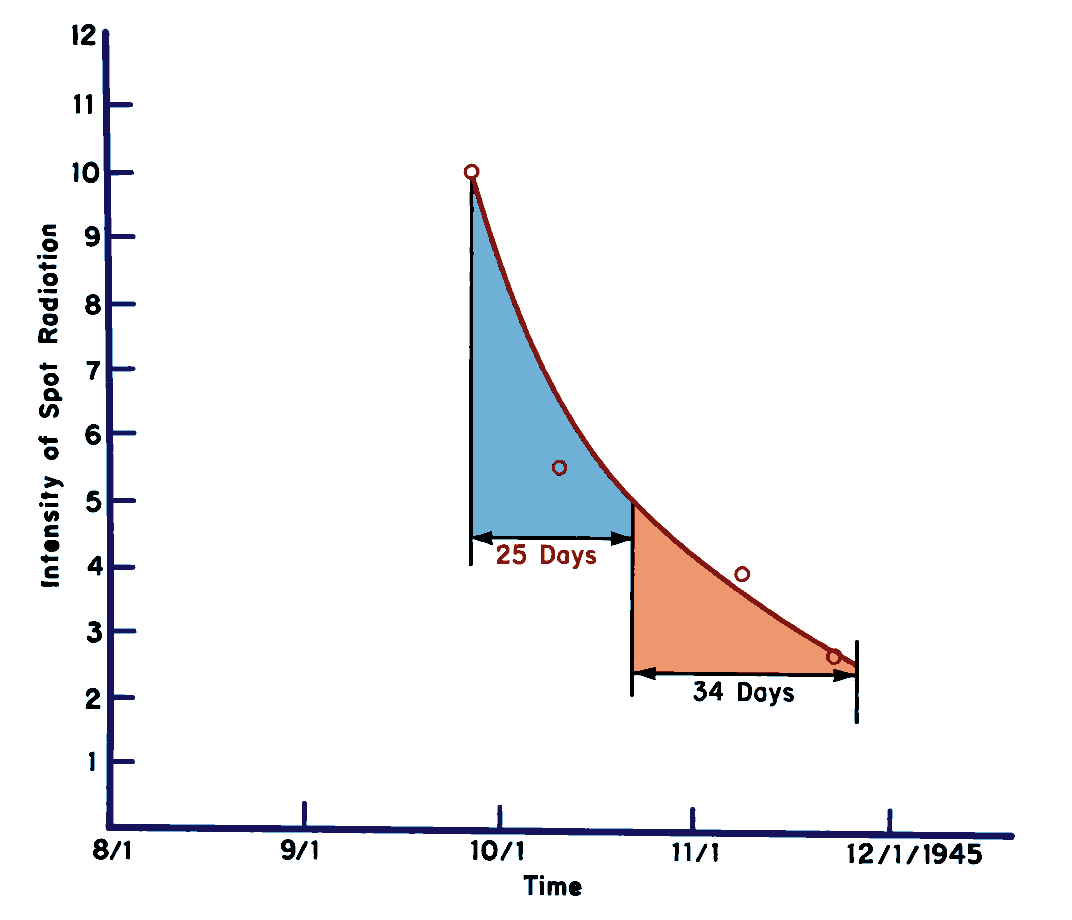

| Fig. 1: Decay of relative β-activity measured from radioactive contaminants in strawboard used for Kodak film packaging. [1] The points are measurements; the curve is an exponential guide to the eye. The ≈30-day half-life is consistent with the fission product Ce-141. (Image Source: T. Ohal, after Webb. [1]) |
In the late summer of 1945, Eastman Kodak Company identified an unexpected fogging problem affecting large batches of photographic and X-ray film produced in Rochester, New York. Investigation quickly showed that the defect was not associated with the film emulsion or processing chemistry, but instead correlated with a specific batch of cardboard packaging material manufactured in Vincennes, Indiana. [1] Radiation measurements revealed that the cardboard itself was radioactive, containing a short-lived beta-emitting fission product introduced through the paper-making process.
This event is frequently summarized as Kodak having "discovered" the Manhattan Project via nuclear fallout. The film was not irradiated by airborne fallout penetrating buildings, but by radioactive material incorporated directly into the cardboard in close contact with the film. [1,2]
The chain of evidence linking the fogged film to nuclear fallout is described in detail by Webb. [1] Radiation surveys of the suspect cardboard showed strong beta activity, weak gamma emission, and negligible alpha radiation, ruling out natural uranium or radium contamination. [1] The activity decayed with an effective half-life of approximately 32 days, and beta-spectrum measurements showed an end-point energy near 0.6 MeV. [1] These two parameters narrow the possible radioactive nuclei to a small subset of fission products. Webb identified Ce-141 as the most plausible candidate, with half-life T1/2 = 32.5 days and beta end-point energy Eβ,max ≈ 0.61 MeV. [1] The corresponding decay constant is
Over a storage interval of two weeks (∼1.2 × 106 s), the activity decreases by only about 25%. The relevant time scales of fallout deposition, paper manufacture, shipping, and film storage are all short compared to the Ce-141 half-life, meaning radioactive decay does not strongly suppress the exposure during this period. [1]
The decay of β-activity measured directly from the contaminated strawboard, shown in Fig. 1, yields an effective half-life of roughly 30 days, supporting identification of the dominant contaminant as Ce-141.
It is important to distinguish fallout deposition from radiation exposure. Fallout refers to radioactive particulate matter deposited on surfaces, often concentrated by rainfall. Fallout does not efficiently irradiate objects indoors unless radioactive material itself is transported inside. In the Kodak case, the exposure pathway was straightforward: fission products from the Trinity test were deposited by rain into the Wabash River basin, incorporated into process water at a paper mill, bound into strawboard fibers, and finally placed in direct contact with film during storage. [2]
The physical exposure geometry responsible for the observed film fogging is illustrated schematically in Fig. 2.
The resulting geometry is that of a thin, weakly radioactive slab pressed directly against a thin, highly sensitive detector. In this configuration, radiation emitted from the outer surface layer of the strawboard is delivered continuously to the adjacent emulsion. Even a very weak radiation field, when maintained over days to weeks of contact, can produce visible fogging after development.
Although photographic film is extremely sensitive to ionizing radiation, it is not a calibrated dosimeter. The optical density produced during development depends nonlinearly on exposure, development time, and chemical processing conditions. For this reason, it is not possible to infer a precise absorbed dose from the degree of fogging alone.
Instead, a physically plausible estimate can be made by estimating activity levels in the contaminated strawboard and evaluating whether they are sufficient to account for the observed fogging over a storage period of approximately two weeks. [1]
 |

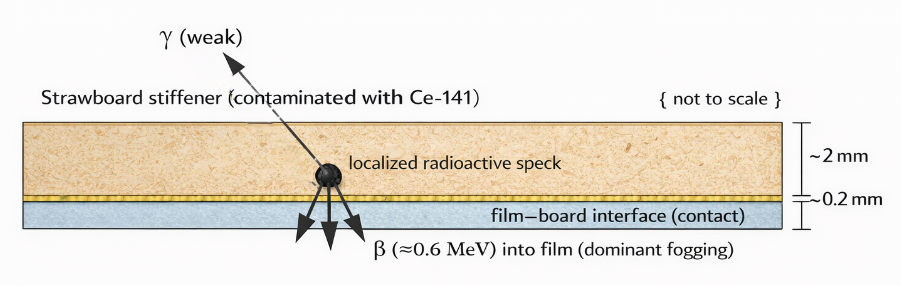

| Fig. 2: Schematic cross section of Kodak's X-ray film packaging, showing a contaminated strawboard stiffener in direct contact with a double-coated film emulsion. Beta particles from Ce-141 (≈0.6 MeV) deposit energy in the emulsion; a weaker gamma component escapes the board. Dimensions are schematic and not to scale. (Image source: T. Ohal.) |
To relate the fogging of the film to the amount of radioactivity in the strawboard, it is useful to qualitatively estimate how the radiation was produced, how it reached the emulsion, and what activity level this implies.
The radioactive contaminant identified by Webb, Ce-141, decays primarily by emitting beta particles, and in the process also produces gamma radiation. The beta particles have very short ranges in solid material, of order 1 mm, and therefore deposit their energy close to where they are emitted. Gamma rays, by contrast, are much more penetrating and can travel through the cardboard and into the film from a further distance.
In practice, the film was pressed directly against the cardboard spacers for days to weeks. This geometry means that the film was continuously exposed to radiation emitted from a thin surface layer of the strawboard. Some of that radiation was absorbed within the cardboard itself, while some escaped and deposited energy in the film emulsion. The film fogging shows that enough radiation escaped the cardboard to produce visible darkening of the emulsion after development.
Rather than tracking each decay in detail, the problem can be simplified as follows: the strawboard acts as a weakly radioactive slab, and the film acts as a very sensitive detector placed directly against it. If visible fogging developed over roughly two weeks, then the cardboard must have been emitting radiation at a rate sufficient to maintain a small but persistent exposure at the film surface throughout the storage period.
A reasonable order-of-magnitude consistency range can be obtained by assuming an activity in the contaminated surface layer of the strawboard on the order 102 - 103 Bq/g. Since 1 Ci = 3.7 × 1010 Bq, this corresponds to approximately 10-9 - 10-8 Ci/g. For a beta-emitter such as Ce-141 with typical decay energies of order 0.6 MeV (≈10-13 J per decay), such activity would release roughly 10-11 - 10-10 J/s per gram. Integrated over weeks of continuous contact with highly sensitive film, this level of emission is sufficient to produce noticeable fogging, while remaining far below levels associated with acute radiation effects. [3]
For comparison, natural radioactivity in ordinary paper and wood products is typically dominated by trace potassium-40, uranium, and thorium radioactive decay products at levels of order 10-2 - 10-1 Bq/g. An activity of 102 - 103 Bq/g in the contaminated surface layer therefore represents levels roughly 103 - 105 over background, consistent with the presence of a concentrated fission product while still remaining extremely small in absolute terms.
This activity level is many orders of magnitude above that of ordinary paper, but negligible compared to the total fission-product output of a nuclear detonation. Only a tiny fraction of the fission products produced in the Trinity test would need to be transported into a single paper-mill batch to account for the observed contamination and subsequent film fogging.
A modest level of short-lived beta-emitting fission products incorporated into strawboard packaging, at activity levels of order 102 - 103 Bq/g, is sufficient to account for the observed film fogging over several weeks of storage without posing any significant health risk to workers or the public. The event illustrates the extraordinary sensitivity of photographic emulsions as passive radiation detectors.
Crucially, the exposure pathway involved radioactive material embedded directly in the packaging and in close contact with the film, rather than airborne fallout irradiating film through building walls. The resulting geometry allowed a weak but persistent radiation field to be integrated over time by the film. From a human health perspective, the activity levels inferred here are far below those associated with acute radiation injury. [3]
The Kodak case provides a clear example of how trace environmental radioactivity can be concentrated by industrial processes and revealed by highly sensitive materials.
