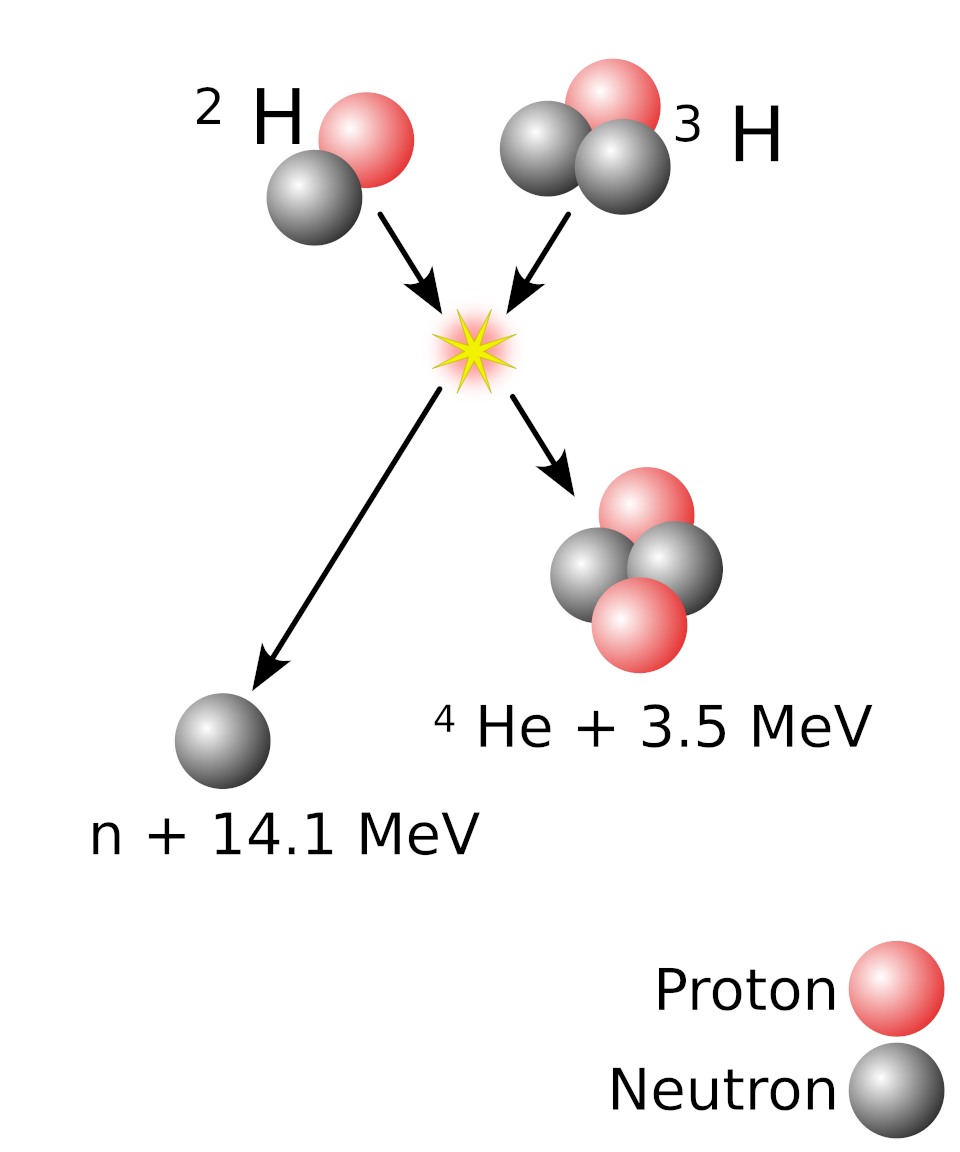

| Fig. 1: Illustration of the deuterium-tritium (DT) fusion reaction. (Source: Wikimedia Commons) |
Nuclear fusion, the process that powers the Sun, has long been pursued as a potential source of abundant, carbon-free energy. Among the two principal approaches to controlled fusion, inertial confinement fusion (ICF) seeks to achieve thermonuclear burn by rapidly compressing and heating a small fuel pellet containing deuterium and tritium. [1] Although fusion has often been described as perpetually 30 years away, a major milestone was achieved on December 13, 2022, at Lawrence Livermore National Laboratory's National Ignition Facility (NIF). In that experiment, 2.05 MJ of laser energy delivered to the target produced 3.15 MJ of fusion energy, corresponding to a target gain of approximately 1.5. [2] This result marked the first laboratory demonstration of net energy gain at the target level and represents a historic breakthrough in fusion science.
In ICF, fusion occurs on nanosecond timescales. High-powered lasers deliver energy symmetrically to a tiny spherical capsule filled with deuterium-tritium (DT) fuel. [1] As seen in Fig. 1, the primary reaction is D + T → 4He (3.5 MeV) + n (14.1 MeV), in which a deuterium nucleus (one proton and one neutron) fuses with a tritium nucleus (one proton and two neutrons) to form an alpha particle and a fast neutron. [2,3] The total energy released is 17.6 MeV per reaction, converting a small amount of mass into energy according to Einstein's equation, E = mc2. [2] In inertial confinement fusion, the charged alpha particle deposits its 3.5 MeV of kinetic energy locally within the compressed fuel, contributing to self-heating of the plasma, while the 14.1 MeV neutron escapes the fuel and serves as a primary diagnostic of fusion yield. At NIF, this process is achieved using the indirect-drive method: nearly 200 laser beams enter a gold cylindrical enclosure known as a hohlraum, where laser energy is converted into x-rays that uniformly irradiate the fuel capsule. [1,2]
As the outer layer of the capsule absorbs energy, it ablates outward. By conservation of momentum, this outward blowoff drives the remaining material inward, compressing the fuel to extreme densities and temperatures. [1] Densities of hundreds of grams per cubic centimeter and temperatures approaching 100 million degrees Celsius are required for ignition. [3] If sufficient conditions are reached, DT nuclei undergo fusion, releasing energetic alpha particles that deposit energy back into the fuel in a process known as self-heating. When this self-heating exceeds energy losses, ignition occurs. [2]
Progress toward ignition at NIF followed decades of experimental and theoretical development. Earlier studies emphasized the need for precise control of laser-plasma interactions, hydrodynamic instabilities, and shock timing in order to achieve symmetric implosion and avoid premature fuel mixing. [4,5] The December 13, 2022 experiment successfully demonstrated that these challenges could be overcome sufficiently to produce net energy gain at the target level. [2]
With 2.05 MJ of laser energy delivered to the target, the fusion reaction produced 3.15 MJ of output energy, yielding a target gain of approximately 1.5. [2] This distinction is important: while the target produced more fusion energy than it absorbed from the lasers, the total electrical energy required to power the laser system was significantly larger. Therefore, the facility did not achieve net electrical energy production. Nevertheless, the experiment demonstrated that alpha-particle self-heating dominated losses in the fuel, fulfilling the long-standing scientific goal of laboratory ignition. [2]
Despite the historic nature of the 2022 experiment, substantial barriers remain before ICF can become a practical energy source. Past assessments emphasized the technical risks associated with laser-plasma instabilities, implosion asymmetry, and materials uncertainties. [4] While the 2022 result demonstrates that ignition is achievable under carefully tuned conditions, future systems must operate at high repetition rates many shots per second rather than a few per day. Laser efficiency must improve dramatically, and target fabrication must become inexpensive and scalable.
Most importantly, overall system gain must greatly exceed unity to compensate for engineering losses and electricity conversion inefficiencies. Thus, while a target gain of ~1.5 is scientifically transformative, it does not yet represent commercial viability.
The December 2022 NIF experiment marked a turning point in fusion research. For the first time, a laboratory fusion experiment produced more energy than was delivered directly to the fuel target. Achieving a target gain of approximately 1.5 demonstrates that ignition is experimentally attainable rather than purely theoretical. Although significant engineering challenges remain, this milestone establishes inertial confinement fusion as a credible pathway toward controlled thermonuclear energy and a major achievement in high-energy-density science.
© Katie Nath. The author warrants that the work is the author's own and that Stanford University provided no input other than typesetting and referencing guidelines. The author grants permission to copy, distribute and display this work in unaltered form, with attribution to the author, for noncommercial purposes only. All other rights, including commercial rights, are reserved to the author.
[1] R. Islam, "Inertial Confinement Fusion: A Promising Alternative?," Physucs 241, Stanford University, (Winter 2015)
[2] H. Abu-Shawareb et al., "Achievement of Target Gain Larger than Unity in an Inertial Fusion Experiment," Phys. Rev. Lett. 132, 065102 (2024).
[3] L. G. Gresh, "Inertial Confinement Fusion: An Introduction," University of Rochester, March 2009.
[4] O. A. Hurricane et al., "Physics Principles of Inertial Confinement Fusion and U.S. Program Pverview," Rev. Mod. Phys. 95, 025005 (2023).
[5] J. D. Lindl, "Development of the Indirect-Drive Approach to Inertial Confinement Fusion and the Target Physics Basis for Ignition and Gain," Phys. Plasmas 2, 3933 (1995).
