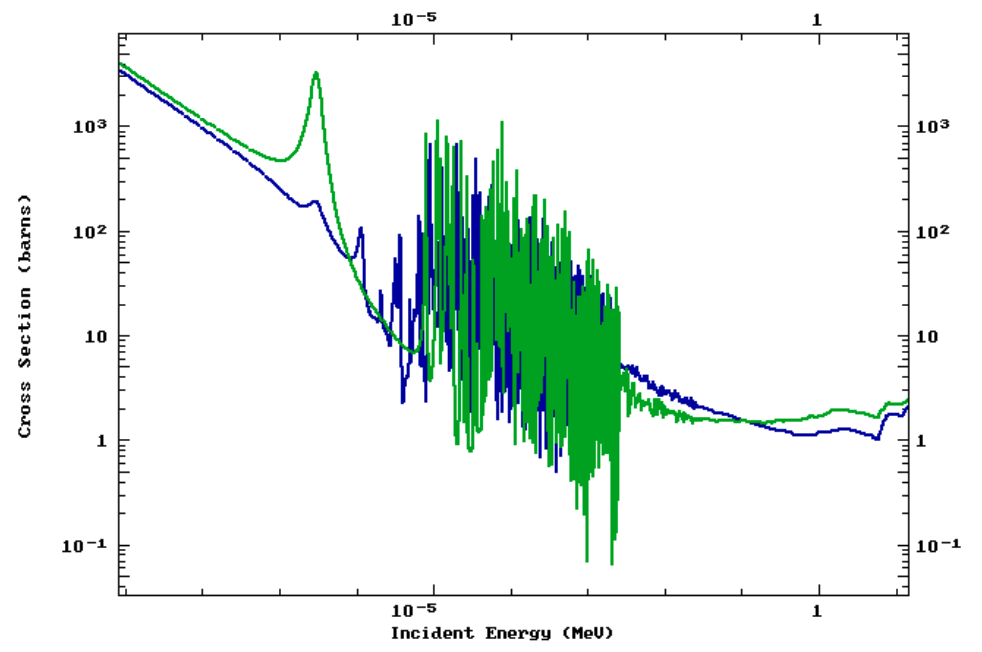

| Fig. 1: Fission cross sections of U-235 (blue) and Pu-239 (green) as a function of neutron energy. [4] (Courtesy of the DOE.) |
Fast neutron reactors have re-emerged as a central theme in advanced nuclear energy discussions, driven by renewed interest in Generation-IV systems, long-term waste management, and compact, high-power nuclear applications. Unlike conventional light-water reactors (LWRs), which rely on neutron moderation to enhance fission probability, fast reactors operate with a hard neutron energy spectrum, fundamentally changing the governing physics, fuel cycle characteristics, and engineering constraints.
Centrally, a shift to a fast spectrum greatly reduces fission probability. The probability of a neutron causing a fission reaction is expressed in terms of fission cross-section (in barns, 1 barn = 10-24 cm2). Fig. 1 shows that for fissile elements this probability is strongly energy-dependent, the fission cross-section is of order 700-1000 barns at thermal speeds (0.025 eV), dropping to 1 barn at around 1 MeV.
This drop has significant implication in reactor functionality. The volumetric power density in a nuclear reactor core can be expressed in simplified form as:
Where P/V is the volumetric power density (Wm-3), and is shown to depend on the product of Φ the neutron flux (nm-2s-1), Σf (= σf N) the macroscopic fission cross section (m-1) where N is the fissile atom number density (m-3) and σf is the microscopic fission cross section (m2), and Ef the energy released per fission (about 200 MeV. [1,2]
Maintaining a comparable power density, given the drop in fission cross-section, therefore requires compensating by increasing neutron flux, as well as fissile atom density. Common strategies include:
Increasing N: higher fissile loading, enrichment levels, tighter lattices and more compact geometries.
Increasing Φ: reducing moderation and absorption, minimizing neutron leakage and adopting neutron reflecting surfaces. [2-4]
Increasing neutron flux is the central physical constraint shaping fast reactor design and has both deep technical and operational implications.
 |

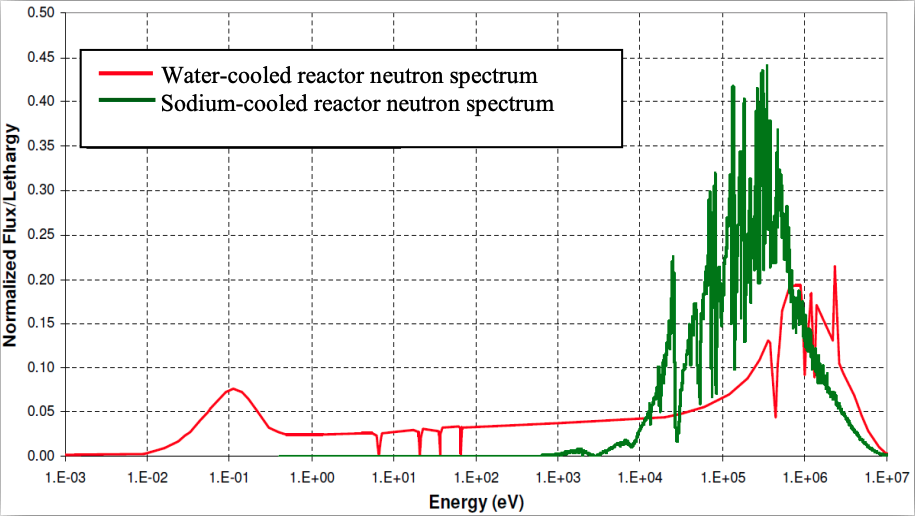

| Fig. 2: Neutron flux comparison for typical water-cooled reactors (red) and fast sodium-cooled reactors (green). [4] (Courtesy of the DOE.) |
In fast reactors, moderation is no longer desirable and cooling cannot be water- based. Neutrons born from fission reactions already have high energies (averaging 1-2 MeV), hence to maintain the spectrum, neutron moderation and absorption outside the fuel must be minimized. In water-cooled reactors, collisions with light nuclei rapidly reduce neutron energy to thermal levels, this cooling strategy is therefore counter-productive. Fig. 2 compares the normalized neutron flux in fast and water-cooled thermal reactors, illustrating neutron energy distribution. In fast reactors, the almost totality of the neutrons is above 10 keV, and such high-energy neutron flux exceeds the thermal flux peak by almost two orders of magnitude. Even high-flux water-moderated test reactors optimized for intense neutron production cannot achieve comparable fast-energy fluxes, excluding therefore the use of water coolants and motivating that of higher atomic mass elements such as liquid metals (sodium, lead, lead-bismuth eutectic) or inert gases (helium). [2,4]
Lead and lead-based coolants have particularly attractive neutronic properties. These have high atomic mass, hence low moderating effectiveness, and relatively low neutron absorption cross section, enabling higher neutron fluxes without significant spectrum softening. Thermally, lead offers a high boiling point and large heat capacity for low-pressure operation and large thermal margins. These advantages are offset by a higher density affecting pumping requirements, corrosion of structural materials, and the need for oxygen control to manage protective oxide layers. Sodium coolant by comparison, offers excellent heat transfer but brings fire and reaction risks, while helium gas is chemically benign but suffers from poor volumetric heat capacity and high-pressure requirements that complicate compact fast-core designs. [5,6]
 |
| Fig. 3: INL study comparing radiotoxicity over the years for once-through LWR reactors and fast reactors with various conversion ratios (CR). [8] (Courtesy of the DOE.) |
A principal attraction of fast reactors is their waste-burning capabilities. At fast neutron energies and high fluxes, the fission-to-capture ratio of plutonium and minor actinides increases markedly, enabling efficient transmutation of long-lived nuclear waste, making these systems exceptional waste burners. The implication is that fast burner reactors can significantly reduce the radiotoxicity and heat load of spent fuel by consuming transuranic elements that are difficult to destroy in thermal systems. Fig. 3 compares radiotoxicity of fast burners compared to once through thermal reactors. [7,8]
Fast reactors also allow for breeding of fissile material from fertile isotopes. Breeding occurs as surplus fast neutrons are absorbed by U238 isotopes in the fuel, producing fissile Pu239 that can later fission and sustain the chain reaction, significantly increasing the energy that can be extracted from the fuel. In an open fuel cycle, bred plutonium remains embedded in spent fuel and is disposed of, whereas in a closed fuel cycle the spent fuel is chemically reprocessed to separate fissile material for recycling and re-use in MOX fuel. [8]
Importantly, breeding is not a prerequisite for the advantages of fast reactors. The fast spectrum alone enables both higher actinide fission rates and greater flexibility in fuel composition. This distinction allows modern designs to focus on waste reduction or fuel utilization without committing to closed fuel cycles, which carry additional complexity and significant policy risk.
Complex engineering has often led to ballooning project costs and delayed deployment timelines. High fast-spectrum neutron flux accelerates radiation damage in cladding and structural steels, coupled to the non-conventional coolants discussed, forcing frequent component replacement and advanced materials R&D. These realities raise construction, operation and maintenance costs well above those of mature LWR designs and constrain achievable, economically sensible power densities. The (negative) historical record bears this out: demonstrator fast breeder projects (Clinch River in the U.S., Superphénix in France, Monju in Japan) suffered long delays, large cost overruns, long outages and eventual cancellation or limited operation. These results shaped government skepticism in the 1980s - 1990s and reduced programmatic support globally. [4,6,9]
A separate but decisive barrier is the proliferation reality that lies in the closed-loop fuel cycle that breeder fast-reactor strategies presuppose. Chemical PUREX reprocessing creates separated streams of plutonium that trigger proliferation concerns and heavy safeguards obligations. Even proliferation-resistant pyroprocessing leaves plutonium-bearing material in forms that, with modest additional effort, could be converted to weapons-usable feedstock. Practically, establishing national or international reprocessing and MOX supply chains requires new investments, coordinated regulation, and political trust, factors that rarely aligned in practice, especially in today's climate. Experience to date shows fast breeder programs have failed to deliver economically competitive, proliferation-safe closed cycles and the proliferation risks associated with separated plutonium remain politically costly. Reactor developers therefore face a choice: accept heavy, expensive safeguards and significant oversight (which raise project costs and timelines), or design systems that minimize separable plutonium inventories (sealed cores, long-life cartridges, burner cores). Modern private and government efforts should therefore favor the latter path to better aligns with non-proliferation policy and system simplicity. [9]
Finally, the institutional and market environment is historically LWR-centric, and that legacy is itself a blocker. Regulatory frameworks, supply chains, training, economics, and public expectations have all coalesced around light-water technology over decades. Regulators in many countries lack experience with fast-spectrum licensing, which increases perceived uncertainty and approval lead times for novel designs. Recent GAO analysis underscores that U.S. regulatory adaptation for advanced reactors remains a work in progress, with important gaps in readiness and resourcing for novel designs. That institutional inertia incentivizes incrementalism (e.g., LWR based Small Modular Reactors) and it channels public and private capital toward LWR extensions rather than shifts to fast breeder programs. [10]
Modern private-sector drive fast reactors differ markedly from the large, state-driven breeder programs of the late 20th century. Recent efforts highlight compact designs, innovative fuel strategies and strategic off-grid deployment rather than attempts to replace gigawatt LWR fleets. Developers are designing 30-400 MWth (5-200 MWe) with small core sizes to keep fast fluxes high while limiting total fluence, materials damage and maintenance. The fuel and commercial strategy is conservative: operate as burners with sealed cores to avoid on-site reprocessing, fitting existing regulatory and non-proliferation constraints and reducing cost and time to deployment.
Lead-cooled reactors align well with a compact design strategy. Newcleo exemplifies the approach: a planned 30 MWe demonstrator followed by a 200 MWe commercial LFR, both aimed at burning MOX and drawing down existing plutonium inventories rather than producing new fissile material. Newcleo positions its fleet as waste-burning SMRs that leverage existing regulatory infrastructure in Europe and pursue industrial partnerships and funding to accelerate demonstration and serial deployment. [11]
Sealed core designs are emerging as an alternative to combine regulatory needs, proliferation barriers and market demands. These are permanently enclosed units that operate without refueling for their entire lifespan. An example is Oklo's Aurora design, intended to be a small fast reactor, targeting to repurpose EBR-II waste through a high-enriched (HALEU) sealed core design for a claimed 20 year core lifetimes without refueling, maintaining a small total fissile inventory to limit proliferation risk even if enrichment levels exceed those of LWRs. DOE has proposed granting Oklo access to 5 metric tons of HALEU for initial fuel fabrication and core demonstration. Such categorical exclusion indicates the activity is considered small-scale and within existing site capabilities, signaling simplified paths to DOE collaboration and fuel access that aligns with existing policy frameworks. Such opportunity fits within Oklo's broader commercial strategy to combine compact reactor blueprints with in‑house HALEU fuel fabrication to provide power-as-a- service to a limited number of high‑value, off‑take customers rather than competing as a commodity equipment vendor. [12]
Larger fast reactor solutions face different strategic choices, as they compete for grid access. TerraPower's Natrium proposes a 345 MWe sodium cooled fast reactor coupled to molten salt thermal storage that can briefly ramp output to about 500 MWe for peak demand. It deliberately avoiding breeding claims and using the familiar pool type sodium architecture plus passive cooling to keep licensing and public risk perception within the bounds of conventional power plants. Strategically, Natrium is positioned as a coal-plant replacement and renewables-firming unit under DOEs Advanced Reactor Demonstration Program, using a public-private 50/50 cost-share of up to about $2 billion. [13]
Strategically, these reactors do not try to replace LWRs on large-scale cost per kWh, as the latter will likely remain the workhorses for on-grid gigawatt baseload until fast technology is extensively proven at smaller scales. Instead, these reactors stake out orthogonal roles: waste burning, providing compact power and industrial heat, and serving off-grid loads at premium pricing. Designs that keep power modest, avoid breeding, simplify fuel cycles such as through sealed cores, and target clearly defined niches are the ones gaining regulatory traction and investment. In support, the private market is signaling willingness to back fast reactor technologies if these pair clear, high value customers with a path to reduced cost and development times, avoid policy blockers and simplify fuel cycles and maintenance rather than betting on wholesale power markets alone.
Fast reactors are defined by a fundamental physical trade-off between reduced fission cross sections and increased neutron flux. This governs core power density, coolant and material choice, and ultimately reactor performance. From both a technical and strategic standpoint, fast reactors are most compelling when viewed not as and gigawatt scale solutions, but as smaller niche opportunities for waste burning, compact power systems, and long-life power applications. While historical challenges remain, modern design strategies that prioritize simplicity, modularity, and realistic fuel cycles that avoid proliferation concerns and align with current regulatory frameworks appear well positioned to succeed.
© Francesco Marchioni. The author warrants that the work is the author's own and that Stanford University provided no input other than typesetting and referencing guidelines. The author grants permission to copy, distribute and display this work in unaltered form, with attribution to the author, for noncommercial purposes only. All other rights, including commercial rights, are reserved to the author.
[1] J. R. Lamarsh and A. J. Baratta, Introduction to Nuclear Engineering, 4th ed. (pearson, 2017).
[2] G. J. Youinou et al., "Scoping Analysis of Sodium Cooled Fast Spectrum Test Reactor Cores," Idaho National Laboratory, INL/EXT-20-57186, January 2020.
[3] N. Woolstenhulme, "Fundamentals of Nuclear Fuel," U.S. Department of Energy, July 2025.
[4] G. J. Youinou, "Preliminary Options Assessment of Versatile Irradiation Test Reactor: Neutron Fluxes in Test Reactors," Idaho National Laboratory, INL/EXT-17-40962, January 2017.
[5] "Handbook on Lead-Bismuth Eutectic Alloy and Lead Properties, Materials Compatibility, Thermal-Hydraulics and Technologies," Nuclear Energy Agency, NEA No. 7268, 2015.
[6] S. J. Zinkle and G. S. Was, "Materials Challenges in Nuclear Energy," Acta Mater. 61, 735 (2013).
[7] "Technology Roadmap Update for Generation IV Nuclear Energy Systems," Generation IV International Forum, January 2014.
[8] S. J. Piet, E. A. Hoffman, and S. E. Bays, "Implications of Fast Reactor Transuranic Conversion Ratio," Idaho National Laboratory INL/CON-10-20139, November 2010.
[9] T. B. Cochran et al., "Fast Breeder Reactor Programs: History and Status," International Panel of Fissile Materials, Report 8, February 2010.
[10] "NRC Needs to Take Additional Actions to Prepare to License Advanced Reactors," US Government Accountability Office, GAO-23-105997, July 2023.
[11] A. Larson, "Enel and Newcleo Agree to Partner on New Gen-IV Small Modular Reactors," POWER Magazine, 14 Mar 23.
[12] "High Assay Low Enriched Uranium (HALEU) Fuel Fab," U.S. Department of Energy, DOE-ID-INL-21-122 R1, June 2023.
[13] "Environmental Impact Statement for the Construction Permit Application for Kemmerer Power Station Unit 1," U.S. Nuclear Regulatory Commission, NUREG-2268, October 2025.
