Thermodynamic Efficiency Limits in Modern Nuclear Power Plants

Introduction

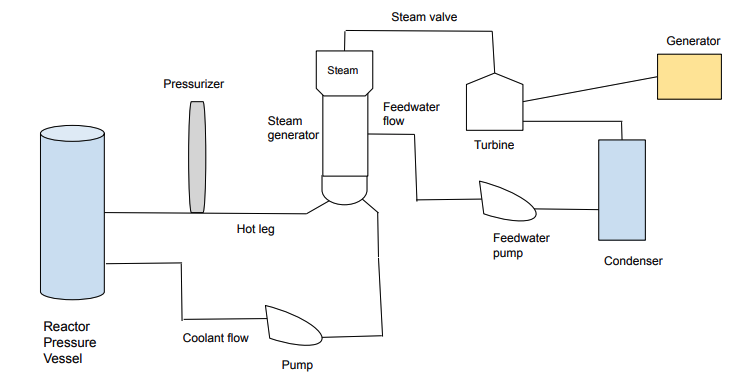

Fig. 1: Schematic diagram of a pressurized water reactor (PWR) showing the primary high-pressure coolant loop and the secondary Rankine steam cycle. Heat generated in the reactor core is transferred by pressurized water in the primary loop to the steam generator, where steam is produced to drive the turbine and generator. The condenser creates the high- temperature and low-temperature reservoirs that determine the thermodynamic efficiency limit of the plant. (Image source: N. Ly, after El-Selfy et al. [7])

Commercial nuclear power plants generate electricity by converting the thermal energy released in nuclear fission into mechanical work through a steam turbine cycle. Although nuclear fuel contains a large amount of energy per unit mass, only a small part of the reactor thermal power is turned into electrical output. Reported net electrical efficiencies for commercial nuclear power plants are typically about 33% of the total reactor thermal output. [1]

The thermal efficiency of a nuclear power plant depends on the thermodynamic properties of the working cycle and on how heat is transferred. The Carnot cycle is described as the most efficient possible method of converting heat into work, operating between a high-temperature and a low-temperature heat reservoir, and its efficiency depends solely on the temperatures of those reservoirs. [2] In practical Rankine cycles, power and efficiency increase as the evaporator temperature increases, while increases in condenser temperature cause power and efficiency to decrease. Thus, the operating temperatures are limited, so the achievable efficiency of commercial nuclear power plants is determined by thermodynamic principles rather than the nuclear reactions producing the heat.

Carnot-Limit Efficiency Estimate for a Commercial Reactor

To estimate the maximum thermodynamic efficiency available to a commercial nuclear power plant, I model the plant as a heat engine operating between a high-temperature reservoir (steam temperature) and a low-temperature reservoir (condenser temperature).

The Carnot efficiency is defined as [3]

For a typical pressurized water reactor, the turbine inlet steam temperature is on the order of T_H = 572°K (299°C). [4] A representative condenser temperature is T_L = 305°K (30°C). [5] We thus have

or 47.1%. Even at one of the highest reported steam temperatures for contemporary water-cooled reactors and condenser temperature, the maximum theoretical efficiency remains below 50%. The net electrical efficiency of modern nuclear power plants is typically about 33% of the reactor thermal output. Thus modern commercial reactors operate at approximately 70% of the theoretical Carnot efficiency.

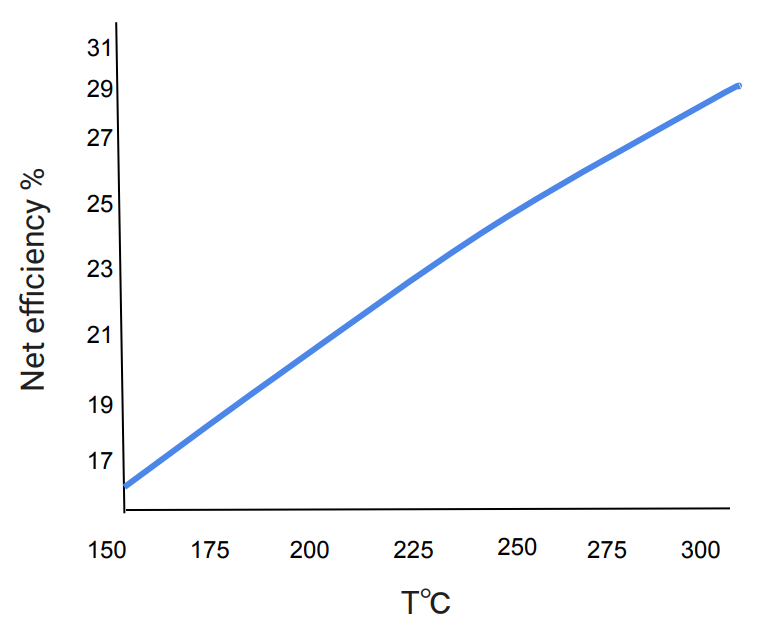

Fig. 2: Net thermodynamic efficiency of the Rankine cycle as a function of turbine inlet temperature. As the turbine inlet temperature increases, the temperature difference between the heat source and the condenser becomes larger, which increases the maximum achievable cycle efficiency. Increasing the inlet temperature from 250°C to 300°C increases the net cycle efficiency by approximately 4%. (Image source: N. Ly, after Kindra et al. [8])

Thermal Power Required for 1 GWe Output

For a target electrical output of 1 GW_e the minimum thermal power required under Carnot conditions would be 1 GW / 0.471 = 2.12 GW_th. However, using reported commercial efficiencies: we obtain 1 GW / 0.33 = 3.03 GW_th. Thus real reactors require approximately 3.03 GWth to produce 1 GWe, significantly above the thermodynamic minimum. The dependence of net efficiency and required operating pressure on turbine inlet temperature is shown in Fig. 2.

Physical Constraints on Steam Temperature in Light-Water Reactors

Although increasing turbine steam temperature would raise the thermodynamic efficiency of commercial nuclear power plants, nuclear reactors operate at significantly lower steam temperatures than modern coal-fired power plants, which can exceed 600°C. The operating temperature in light-water reactors is constrained by pressure levels. In pressurized water reactors (PWRs) seen in Fig. 1, the primary coolant circulates from the reactor core to the steam generators under pressures maintained at approximately 15.4 MPa by a pressurizer system. At this pressure, the reactor core raises the temperature of the pressurized water to about 325°C while preventing boiling in the primary loop. [4] This high-pressure requirement is necessary to maintain liquid water for heat removal, so you cannot just continually increase the steam temperature for higher carnot efficiency. Higher pressures increase mechanical stresses on the reactor.

In addition to pressure constraints, material degradation mechanisms further limit operating temperatures. As noted in studies of Mn-Mo-Ni reactor pressure vessel steels, creep is a life limiting mechanical degradation mechanism generally observed in many engineering components operating at high temperatures and stress conditions. [6]

At higher temperatures the strength of structural steels decreases due to creep, so operating at significantly higher temperatures would require thicker pressure vessels or more expensive high-temperature alloys.

© Nathan Li. The author warrants that the work is the author's own and that Stanford University provided no input other than typesetting and referencing guidelines. The author grants permission to copy, distribute and display this work in unaltered form, with attribution to the author, for noncommercial purposes only. All other rights, including commercial rights, are reserved to the author.

References

[1] O. Eriksson, "Nuclear Power and Resource Efficiency - A Proposal for a Revised Primary Energy Factor," Sustainability 9, 1063 (2017).

[2] A. Alkotami, "Thermodynamic Performance Analysis and Design of an Organic Rankine Cycle (ORC) Driven by Solar Energy for Power Generation," Sustainability 17, 5742 (2025).

[3] B. Zhao, "Power-Effectiveness and Power-Entropy Transfer Efficiency Tradeoffs For Carnot Heat Engines With External and Internal Irreversibilities," Energy 334, 137685 (2025).

[4] J. Tominaga, "Steam Turbine Cycles and Cycle Design Pptimization: Advanced Ultra-Supercritical Thermal Power Plants and Nuclear Power Plants," in Advances in Steam Turbines for Modern Power Plants, ed. by T. Tanuma (Woodhead Publishing, 2022).

[5] S. I. Attia, "The Influence of Condenser Cooling Water Temperature on the Thermal Efficiency of a Nuclear Power Plant," Ann. Nucl. Energy 80, 371378 (2015).

[6] A. Sarkar et al., "High Temperature Creep Behavior of a Low Alloy Mn-Mo-Ni Reactor Pressure Vessel Steel," J. Nucl. Mater. 557, 153293 (2021).

[7] Md. El-Sefy et al., "System Dynamics Simulation of the Thermal Dynamic Processes in Nuclear Power Plants," Nucl. Eng. Technol. 51, 1540 (2019).

[8] V. Kindra et al., "Thermodynamic Analysis and Comparison of Power Cycles for Small Modular Reactors," Energies 17, 1650 (2024).
