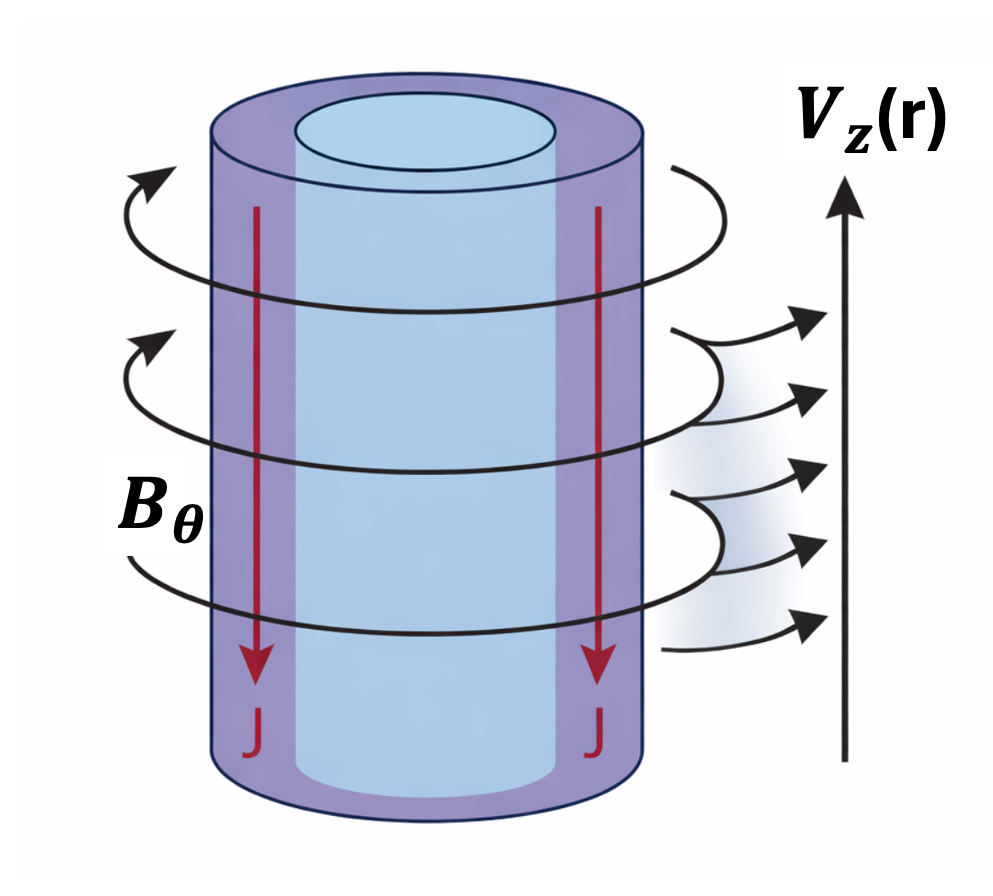

| Fig. 1: Schematic of a sheared-flow-stabilized Z-pinch. (Image source: P. Dedeler) |
Z-pinch fusion is one of the simplest magnetic-confinement fusion concepts. In a Z-pinch, a large electric current is driven directly through a plasma column, and that current generates an azimuthal magnetic field around the plasma. The interaction of the current with its own magnetic field produces an inward Lorentz force that compresses the plasma to higher density and temperature. This makes the concept attractive because the plasma helps create its own confining field, so the system can be much more compact than many other fusion approaches. [1]
The main challenge, however, is instability: classical Z-pinches are vulnerable to fast-growing magnetohydrodynamic modes that can disrupt the plasma before substantial fusion output is reached. Recent work has therefore focused on the sheared-flow-stabilized Z-pinch, in which axial flow shear is used to reduce these instabilities and extend the lifetime of the compressed plasma. As shown schematically in Fig. 1, the axial current still produces the magnetic field that pinches the plasma inward, but the additional sheared axial flow helps suppress the growth of disruptive instabilities that historically limited the classical Z-pinch. [1] This is one reason the sheared-flow approach has attracted interest as a potentially more compact fusion concept that does not rely on the large external magnet structures used in many other fusion devices. In this report, I focus mainly on the commercial sheared-flow-stabilized Z-pinch approach pursued by Zap Energy, while noting that broader z-pinch-related work is also carried out at national laboratories such as Sandia National Laboratories on the Z Machine (the Z Pulsed Power Facility), as well as in other gas-puff z-pinch programs. [2,3,8]
Recent progress matters because the field has moved beyond simply detecting neutrons and has started to show a hotter, longer-lived, and better-diagnosed plasma. [4,5,6,7] Experiments have reported sustained quasi-steady neutron production lasting about 5 µs during an approximately 16 µs quiescent period, with pinch currents around 200 kA, plasma temperatures near 1-2 keV, densities near 1017 cm-3, and an average neutron yield of (1.25 ± 0.45) × 105 neutrons per pulse. That was an important step because it showed that a stabilized Z-pinch could produce fusion-relevant conditions for microseconds rather than only in brief unstable bursts.
Later measurements found that the neutron signal was consistent with mostly thermonuclear production rather than being dominated by beam-target effects, which matters because neutron production alone is not enough if it comes mainly from instabilities rather than a genuinely hot fusion plasma. [5,7] Additional diagnostics measured electron temperatures of 1-3 keV during the neutron-producing phase, and newer higher-performance discharges reached average currents near 370 kA and yields of about 4 × 107 neutrons per discharge while still remaining broadly consistent with thermonuclear origin for most of the neutron production. [6,7] Together, these results make the modern sheared-flow-stabilized Z-pinch more scientifically credible than earlier Z-pinch efforts because the plasma is not only producing neutrons, but doing so under increasingly measured and constrained fusion-relevant conditions.
A recent overview of the commercial sheared-flow-stabilized Z-pinch approach reports deuterium-deuterium fusion yields above 109 neutrons per pulse. [8] A simple estimate shows what that means in energy terms. In deuterium-deuterium fusion, one main branch releases 3.27 MeV and the other releases 4.03 MeV, so the average released energy per reaction is about 3.65 MeV. If the two branches are treated as occurring with roughly comparable probability, then a measured neutron yield of 109 corresponds to about 2 × 109 total fusion reactions.
The total fusion energy per pulse is therefore
| E | = | 2.0 × 109 fusions × 3.65 × 106 eV fusion-1 × 1.602 × 10-19 J eV-1 |
| = | 1.17 × 10-3 J |
So even a published yield above 109 neutrons per pulse corresponds to only about 1 millijoule of total fusion energy per pulse. [8] This estimate represents only the fusion energy output; the electrical energy required to drive the Z-pinch discharge is much larger, so this result should be understood as a proof-of-principle neutron-producing plasma rather than an energy-producing system. This 109-neutron scale should also be understood specifically as a result reported for the modern Zap Energy approach, not as a general upper limit for all z-pinch-related fusion experiments. Other z-pinch-related pulsed-power systems, such as Sandia National Laboratories’ MagLIF experiments on the Z machine, have reported substantially higher neutron yields. [3] For comparison, ignition-scale inertial-fusion experiments at the National Ignition Facility at Lawrence Livermore National Laboratory operate at multi-megajoule fusion yield levels. [9]
Overall, z-pinch fusion remains compelling because it offers a compact confinement concept in which the plasma current itself generates the magnetic field responsible for compression. The best recent results in the sheared-flow-stabilized approach do not show practical energy production yet, but they do show real progress in the areas that historically limited the concept most: stability, diagnostic confidence, and fusion-relevant plasma conditions. For that reason, the modern sheared-flow-stabilized Z-pinch should be viewed as a serious and improving fusion concept rather than only a historically unstable idea. At the same time, the estimated fusion energy per pulse at the 109-neutron level remains on the order of 10-3 J, so the approach is still much closer to proof-of-principle plasma physics than to a practical power-producing reactor.
