| Fig. 1: A confocal microscopy image of banana peel chloroplasts at 40x. (Image source: L. Takiguchi) |
Photosynthetic organisms including plants, algae, and photosynthetic bacteria use specialized cellular architectures to capture and convert solar radiation into chemical energy. In plants, this conversion occurs in the chloroplast (Fig. 1), a double membrane organelle with an internal thylakoid network that concentrates chlorophyll within highly ordered pigment:protein assemblies. [1] These complexes are not passive absorbers. They have been shaped by evolution to channel electronic excitation with exceptional efficiency, and the fundamental physics behind that process requires quantum mechanics for sufficient explanation. [2] When a chlorophyll molecule absorbs a photon, it generates an excited electronic state that is intrinsically delocalized across the whole π-conjugated macrocycle. [2] That excitation behaves as a mobile quantum object whose migration toward reaction centers is governed by coherent coupling between pigments, the energy landscape defined by the protein environment, and ultrafast electron-transfer and relaxation pathways. [2] These features set the stage for the nearly loss-free energy transport mechanisms discussed in the following section.
Chlorophyll a (Fig. 2) is a cyclic tetrapyrrole whose rigid macrocycle supports an extended conjugated π system. [3] The alternating double-bond network produces a delocalized electron cloud that narrows the energy gap between ground and excited states, which is why chlorophyll absorbs visible photons so effectively. [4] When a photon with energy matching the HOMO-LUMO gap is absorbed, an electron is promoted into an excited state that resides not on a single bond but across the entire aromatic scaffold. [3] This delocalization sharpens spectral features, stabilizes the excited state, and enables efficient coupling of excitations between neighboring molecules. [3] Now, here is a quick calculation of a representative red band absorption at 680 nm, which corresponds to an excitation energy of
| E | = | hc λ |
= | 6.626 × 10-34 J s ×
3.0 × 108 m sec-1 680 × 10-9 m |
= | 2.9 × 10-19 J | = | 1.8 eV |
where λ = wavelength of absorbed photon, h = Planck's constant, and c = speed of light in vacuum. Analogously, E(430 nm) = hc/(430 nm) = 2.9 eV.
These quantitative values highlight that the energies involved in chlorophyll excitation fall squarely into a regime where quantum coherence can influence transport. Excitons generated in the red band have just enough energy for efficient delocalization across neighboring pigments without strong coupling to high energy vibrational modes, which would otherwise cause rapid dephasing. [4] In other words, the 2 eV band gap places chlorophyll at a sweet spot where evolution can exploit both coherent and incoherent transport pathways.
A Mg2+ ion coordinated by four nitrogen atoms sits at the center of the macrocycle, tuning the electronic structure and shifting absorption into regions of the solar spectrum most relevant for photosynthesis. [1] The attached phytol tail, a long hydrophobic chain, anchors the molecule in the thylakoid membrane and promotes its assembly into densely packed pigment:protein complexes. [3] Within these complexes, electronic excitations created by photon absorption do not remain localized. They migrate through a network of chlorophylls by a combination of Forster-type dipole coupling and quantum coherent delocalization. [4] The interplay of these mechanisms allows excitons to traverse nanometer scale distances with minimal dissipation, positioning chlorophyll as the central molecular component enabling the ultrafast, high fidelity energy transfer processes.
 |

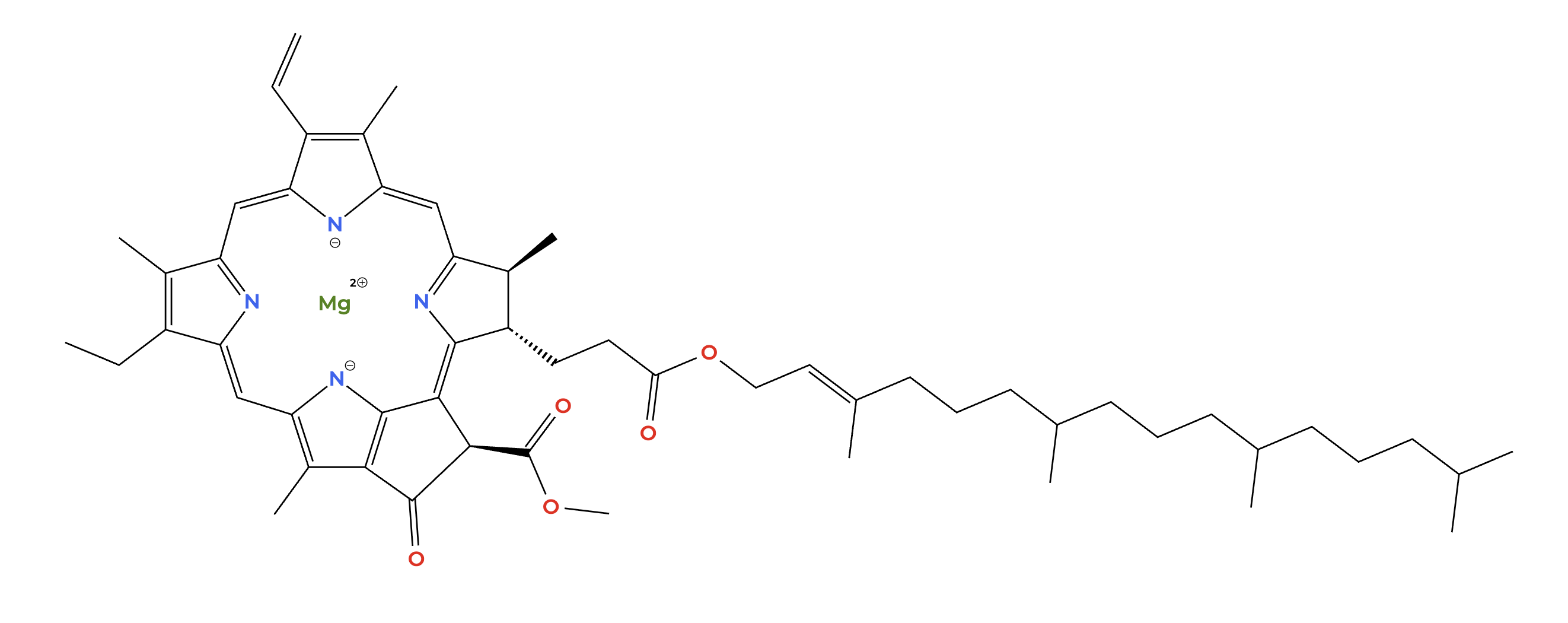

| Fig. 2: The chemical structure of chlorophyll a. (Image source: L. Takiguchi) |
Photosynthetic energy transport begins with exciton creation in a chlorophyll molecule. Chlorophyll is fundamentally a quantum object: a central Mg2+ ion coordinates a delocalized &pi electron cloud whose electronic structure is well described as a two level system consisting of a ground state and discrete excited states. [4] When a photon matches the energy gap between these states, an electron is promoted to an excited level and an exciton is generated. The positions of the red (650-700 nm, ~1.8 eV) and blue (400-450 nm, ~2.9 eV) absorption peaks reflect the energy differences to the first and second excited states. These excited states are not localized on a single atom but are distributed across the macrocycle, which stabilizes the excitation and sets up the conditions for efficient energy migration. [4]
Excitons relax through two main channels, heat and fluorescence. Heat loss originates from vibrational coupling within the molecule, while fluorescence represents radiative decay and is red shifted relative to absorption. [4] If the exciton dissipates too much energy through vibrational relaxation, it becomes trapped and decays before contributing to photochemistry. [5] Efficient energy transfer therefore requires that excitons migrate through the chlorophyll network faster than they relax.
Energy migration between chlorophylls can proceed through two limiting mechanisms. [4] The semiclassical model is Forster Resonance Energy Transfer (FRET), in which electronic coupling drives transfer between adjacent pigments with a rate that depends on distance, spectral overlap, and dipole orientation, and falls off with the inverse sixth power of separation. [5] Distances of one to two nanometers produce strong coupling and high transfer rates, while separations beyond roughly ten nanometers severely limit transport. In this limit, excitons undergo a random walk where each hop is local, and the distance traveled scales with the square root of the number of steps.
Because FRET rates scale as d-6, small changes in distance have large functional consequences. For example, comparing molecular separations of 1.5 nm and 3.0 nm,
meaning that halving molecule spacing increases the energy transfer rate by 64x. This strong distance dependence explains why photosynthetic antennas pack chlorophylls at sub nanometer to few nanometer separations.
The second mechanism is fully quantum and involves exciton delocalization. When electronic coupling between molecules is strong and structural disorder is low, the excitation spreads over multiple chlorophylls, transforming the process from a random walk into coherent propagation. [4] In a hypothetical ideal system without disorder, the spatial extent of the exciton would grow linearly with the number of steps rather than the square root. Real biological systems fall between these extremes. Disorder and environmental noise cause dephasing, which disrupts coherence and prevents full delocalization. Coherence times in light harvesting complexes are extremely short, typically sub picosecond, yet long enough to influence energy flow pathways. [4]
Evolution has organized pigments in light harvesting antennas and reaction centers at the quantumclassical boundary. Chlorophylls are positioned at sub nanometer to few nanometer separations across architectures ranging from the compact FMO complex to ring-like bacterial LHII and the more heterogeneous LHCII. [2] These length scales lie exactly where FRET and coherent coupling compete. This interplay allows excitons to sample multiple pathways but also ensures robustness against environmental fluctuations. The system sacrifices theoretical maximum efficiency in exchange for adaptability, a core principle of quantum thermodynamics.
Recent ultrafast spectroscopic techniques, particularly 2D electronic spectroscopy, have provided evidence that both coherent and incoherent regimes contribute to photosynthetic energy transport. [4] Oscillatory features in the spectra have been interpreted as signatures of quantum coherence, although debate persists over whether they reflect true electronic wave-packet behavior or coupling to protein vibrational modes. Regardless of interpretation, these studies reveal that exciton vibration matching and controlled dephasing are essential for directing energy toward charge separation sites with minimal loss. [5] This framework aligns with a 2024 study from TUM, which analyzed chlorophyll absorption in both the low energy Q band and the high energy B band. [4] The Q band consists of 2 quantum mechanically coupled electronic states that enable nearly loss-free internal energy flow before the system relaxes thermally. These results reinforce the idea that quantum mechanical structure, rather than classical intuition, governs the earliest and most crucial stages of photosynthetic energy transfer.
Together, these insights suggest that photosynthetic organisms operate not by maximizing coherence but by tuning their pigment:protein environment to a delicate balance where coherent and incoherent transport coexist. This dynamic framework enables efficient, flexible, and robust energy harvesting. Understanding this design principle holds direct relevance for artificial photosynthetic systems, where engineered control over coherence, coupling, and dephasing could enable solar energy technologies with efficiencies far beyond current synthetic approaches.
© Lauren Takiguchi. The author warrants that the work is the author's own and that Stanford University provided no input other than typesetting and referencing guidelines. The author grants permission to copy, distribute and display this work in unaltered form, with attribution to the author, for noncommercial purposes only. All other rights, including commercial rights, are reserved to the author.
[1] L. P. Vernon and G. R. Seely, The Chlorophylls: Physical, Chemical, and Biological Properties (Academic Press Inc., 1966).
[2] T. Ritz, A. Damna vić, and K. Schulten, "The Quantum Physics of dPhotosynthesis," ChemPhysChem 3, 243 (2002).
[3] G. Buscemi et al., "Chlorophylls as Molecular Semiconductors: Introduction and State of the Art," Adv. Mater. Technol. 7, 2100245 (2022).
[4] E. Keil et al., "Reassessing the Role and Lifetime of Qx in the Energy Transfer Dynamics of Alorophyll a," Chemical Science 16, 1684 (2024).
[5] N. Keren and Y. Paltiel, "Photosynthetic Energy Transfer at the Quantum/Classical Border," Trends Plant Sci. 23, 497 (2018).
